Engineering Spotlight: The 7-Meter ASME Dump Tank
This project highlights a high-capacity Dump Tank engineered for rigorous thermal and pressure demands. Designed under the strict ASME Section VIII Div 1 (2021 Edition) code, this vessel is a masterclass in carbon steel fabrication and external heat exchange efficiency.
The Challenge: Massive Volume, Precise Temperature
Managing a vessel with a 4300 mm Internal Diameter and an overall length of 7176 mm requires more than just structural strength; it requires advanced thermal management.
The Technical Specs
- Equipment Type: Horizontal Dump Tank.
- Capacity & Build: Manufactured from SA 516 Gr 70, optimized for high-tensile pressure service.
- Complex Nozzle Array: Featuring 25 specialized nozzles for intricate process integration.
Thermal & Pressure Profile
|
|
|
|
|
|
|
|
|
|
|
|

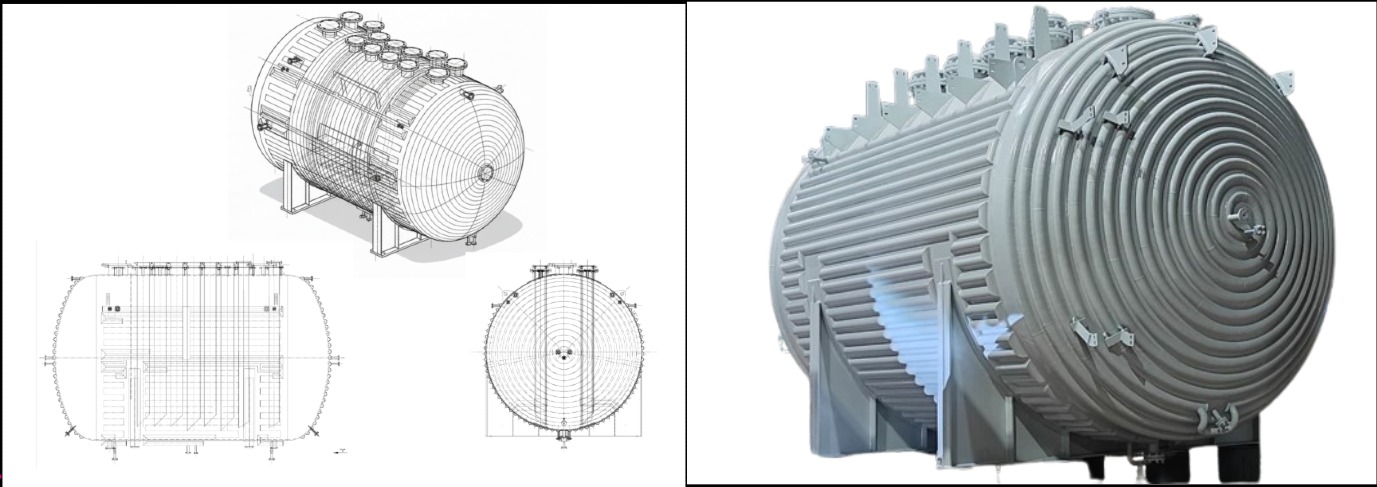

Key Design Feature: Full-Wrap Limpet Coils
The standout feature of this tank is the Limpet Coil system. Unlike standard designs that focus only on the shell, this vessel features:
- Full Shell Coverage: High-velocity flow paths for consistent heating and cooling.
Dish End Spirals: The coils extend to the dish ends in a concentric spiral, ensuring no "cold spots" in the tank.
